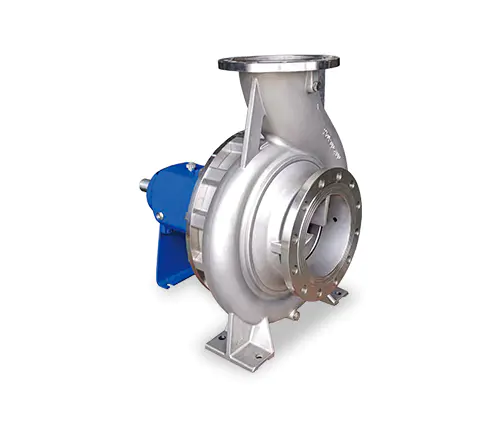

YK Series Horizontal Single-stage End suction Centrifugal Pump

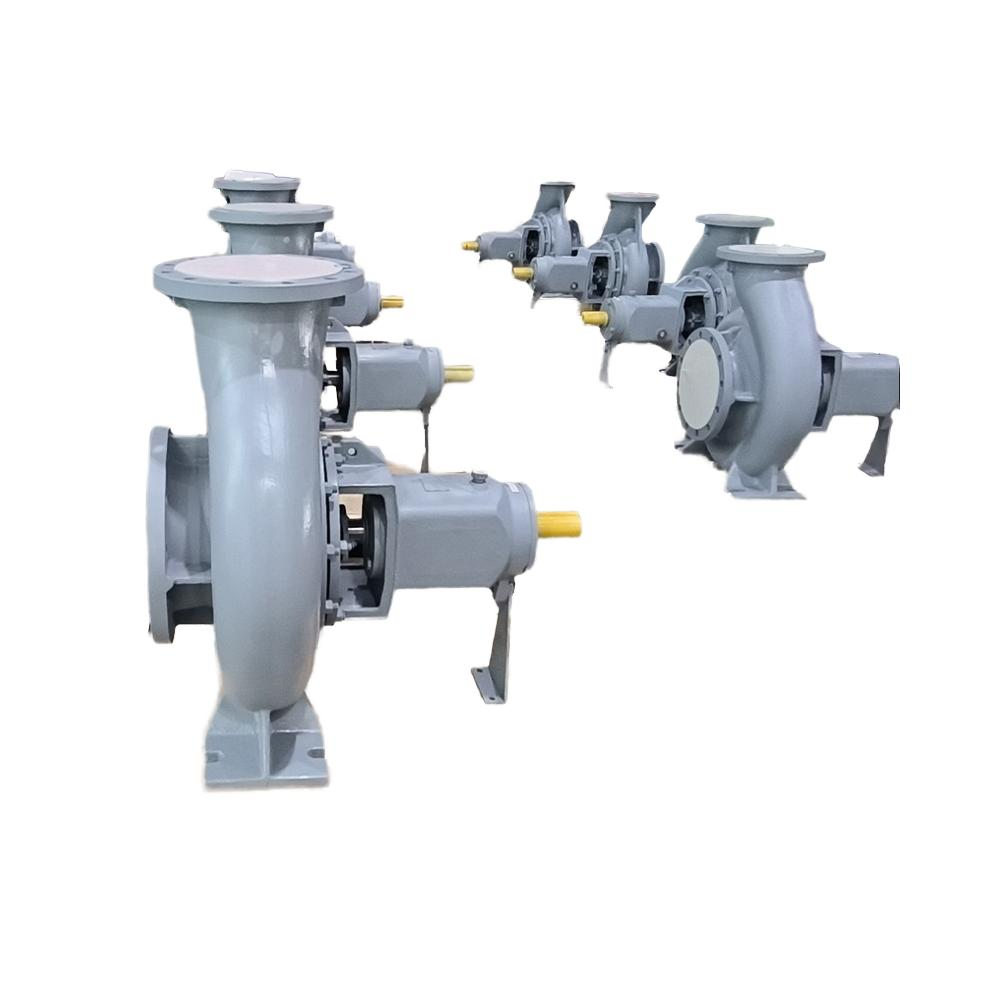

YK Series Horizontal Single-stage End suction Centrifugal Pump - Image 2

YK Series Horizontal Single-stage End suction Centrifugal Pump

Categories :

Description

YK Series end suction centrifugal pumps are designed with technical benefits to meet the needs of users in a variety of city water supply, fire fighting, irrigation, and cooling applications.
YK Series stainless steel pumps are featured in anti-corrosion and applicable to the corrosive liquor.



● Design & Material
• Bare Shaft  • Direct Coupled with Electric Motor or Engine
Design Performance and dimensions referring to the European standard BS EN733/DIN24255
Structure Horizontal,Axial End-Suction,Single-Stage,Single-Suction,Volute Casing,Back pull-out
DN (mm) 32 – 150
Flange DIN2501 standard,ANSI B16.5 Class 150lb optional
Casing Stainless Steel
Impeller Stainless Steel
Shaft Stainless Steel
Shaft Seal Mechanical Seal
● Operating Data
Flow Rate(Q) 2-1100 m3/h
Head(H) 2-152m
Speed 1450~2900 rpm (50HZ), 1750~3500 rpm (60HZ)
Temperature -10 Celsius to 105 Celsius
Working Pressure  1.2 MPa standard, 1.6 MPa on request

Applications

● Heating, ventilation and air-conditioning

● Fire Protection and Fire Fighting

● Water circulation

● Liquid transfer

● Irrigation

● Cooling

● Booster service
