Description

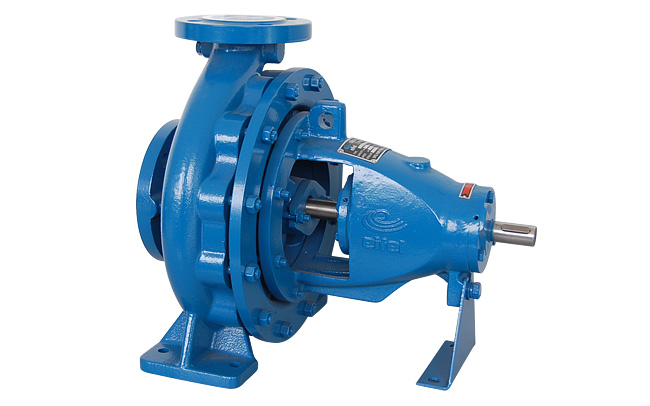

YK Series end suction centrifugal pumps are designed with technical benefits to meet the needs of users in a variety of city water supply, fire fighting, irrigation, and cooling applications.
| ● Design & Material | ||
| • Bare Shaft • Direct Coupled with Electric Motor or Engine | ||
| Design | Performance and dimensions referring to the European standard BS EN733/DIN24255 | |
| Structure | Horizontal,Axial End-Suction,Single-Stage,Single-Suction,Volute Casing,Back pull-out | |
| DN (mm) | 32 – 300 | |
| Flange | DIN2501 standard,ANSI B16.5 Class 150lb optional | |
| Casing | Cast Iron standard,Ductile Iron,Stainless Steel optional | |
| Impeller | Bronze standard,Cast Iron,Stainless Steel optional | |
| Shaft | ASTM420standard, ASTM304, ASTM316, ASTM1045 optional | |
| Shaft Seal | Mechanical Seal Standard, Gland Packing optional | |
| ● Operating Data | ||
| Flow Rate(Q) | 2-1100 m3/h | |
| Head(H) | 2-152m | |
| Speed | 1450~2900 rpm (50HZ), 1750~3500 rpm (60HZ) | |
| Temperature | -10 Celsius to 105 Celsius | |
| Working Pressure | 1.0 MPa standard, 1.6 MPa on request | |
Applications
● Heating, ventilation and air-conditioning
● Fire Protection and Fire Fighting
● Water circulation
● Liquid transfer
● Irrigation
● Cooling
● Booster service
