Description

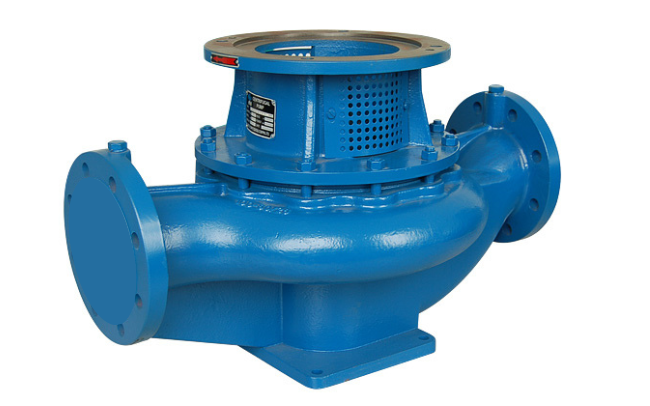

YKM Series vertical inline pump offer vertical and close coupled design for space saving to meet the needs of users in a variety of cold and hot water circulation, civil and general industrial. They are driven by IEC standard motor and less space-required for installation.
| ● Design & Material | ||
| • Closed Coupled with IEC B5 • Extended and Stub Shaft | ||
| Design | Performance referring to BS EN733/DIN24255 standard | |
| Structure | Vertical,Single-Stage,Single-Suction,Volute,Casing,In-line | |
| DN (mm) | 40 – 200 | |
| Flange | DIN2501 standard,ANSI B16.5 Class 150lb optional | |
| Casing | Cast Iron standard,Ductile Iron optional | |
| Impeller | Bronze standard,Cast Iron,Stainless Steel optional | |
| Shaft | ASTM420standard,ASTM304,ASTM316,ASTM1045optional | |
| Shaft Seal | Mechanical Seal (Carbon-Sic/Viton) | |
| ● Operating Data | ||
| Max Flow Rate(Qmax) | 600 m3/h | |
| Max Head(Hmax) | 155m | |
| Speed | 1450~2900 rpm (50HZ), 1750~3500 rpm (60HZ) | |
| Temperature | -10 Celsius to 105 Celsius | |
| Working Pressure | 1.6 MPa standard | |
Applications
● Heating, ventilation and air-conditioning
● Fire Protection and Fire Fighting
● Water circulation
● Liquid transfer
● Irrigation
● Cooling
● Booster service
